Lecture 23: Genome Assembly

Learning Objectives

By the end of this lecture, you will be able to:

Explain why genome assembly is like solving a puzzle without the picture on the box
Define k-mer composition and coverage
State the three laws of assembly
Construct overlap graphs and de Bruijn graphs from k-mer collections
Distinguish Hamiltonian paths from Eulerian paths and explain why the latter are computationally tractable
Explain how k-mer size and read length affect repeat resolution
Define contig, scaffold, and N50

1. The Assembly Problem

Genome assembly is reconstructing a genome sequence from sequencing reads—without knowing what the answer looks like. It is analogous to assembling a jigsaw puzzle without the picture on the box [1].

Whole-genome shotgun sequencing works by copying the input DNA many times, then randomly fragmenting all copies into short pieces (reads). The term “shotgun” refers to this random fragmentation—as if the genome was blasted apart. Our task: take the resulting pile of fragments and reconstruct the original sequence.

                   CTAGGCCCTCAATTTTT
                 CTCTAGGCCCTCAATTTTT
               GGCTCTAGGCCCTCATTTTTT
            CTCGGCTCTAGCCCCTCATTTT
         TATCTCGACTCTAGGCCCTCA           <- Reads (Given)
         TATCTCGACTCTAGGCC
     TCTATATCTCGGCTCTAGG
 GGCGTCTATATCTCG
 GGCGTCGATATCT
 GGCGTCTATATCT
 -----------------------------------
 ???????????????????????????????????     <- Genome (Unknown)

2. K-mer Composition

Genomes are strings of text. Sequencing generates reads—substrings of the genome. For simplicity, assume all reads have the same length \(k\). The k-mer composition of a genome is the collection of all its length-\(k\) substrings.

For the short “genome” TATGGGGTGC with \(k = 3\):

\[ Composition_3(\texttt{TATGGGGTGC}) = \texttt{ATG, GGG, GGG, GGT, GTG, TAT, TGC, TGG} \]

We list k-mers in lexicographic (alphabetical) order because a sequencing machine does not produce reads in any particular order—we do not know where each read came from in the genome.

3. Assembly by Overlap

Given a scrambled collection of k-mers, we try to reconstruct the genome by tiling k-mers that overlap in \(k-1\) nucleotides. Consider these five 3-mers:

\[ \texttt{AAT ATG GTT TAA TGT} \]

Tiling them by their overlaps:

TAA
 AAT
  ATG
   TGT
    GTT
-------
TAATGTT

This works perfectly for simple cases. But what happens with repeats? Consider a larger 3-mer collection:

\[ \texttt{AAT ATG ATG ATG CAT CCA GAT GCC GGA GGG GTT TAA TGC TGG TGT} \]

The 3-mer ATG appears three times. Each ATG can be followed by TGC, TGG, or TGT—we don’t know which goes where. Choosing the wrong extension leads to a dead end or an incorrect assembly.

One successful tiling produces the “genome path”:

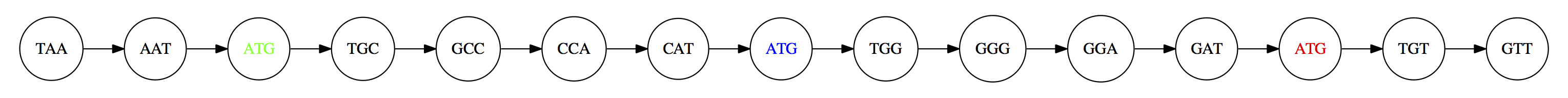

Genome path for the 3-mer collection. Each 3-mer overlaps its neighbor by 2 bases, spelling out `TAATGCCATGGGATGTT`.

4. Coverage

Coverage is the number of reads covering a given position in the genome. In this example:

TAA
 AAT
  ATG
   TGT
    GTT
-------
TAATGTT
0123456

Position 0 has coverage 1, position 3 has coverage 3. The average coverage is total bases in reads divided by genome length: \(\frac{15}{7} \approx 2\times\).

A more realistic example with ~\(5\times\) coverage:

                  CTAGGCCCTCAATTTTT
                CTCTAGGCCCTCAATTTTT
              GGCTCTAGGCCCTCATTTTTT
           CTCGGCTCTAGCCCCTCATTTT
        TATCTCGACTCTAGGCCCTCA
        TATCTCGACTCTAGGCC
    TCTATATCTCGGCTCTAGG
GGCGTCTATATCTCG
GGCGTCGATATCT
GGCGTCTATATCT
-----------------------------------
GGCGTCTATATCTCGGCTCTAGGCCCTCATTTTTT

Average coverage: \(\frac{177}{35} \approx 5\times\).

5. The Three Laws of Assembly

The First Law: Overlaps Imply Co-location

If the suffix of one read matches the prefix of another, the two reads may originate from overlapping positions in the genome:

TCTATATCTCGGCTCTAGG    <- read 1
    |||||||||||||||
    TATCTCGACTCTAGGCC  <- read 2

The match does not need to be perfect. Differences may arise from sequencing errors, allelic variation (in diploid organisms), or polymorphisms within a population of cells.

The Second Law: Higher Coverage Is Better

Higher coverage means more overlaps, longer overlaps, and fewer gaps:

         TATCTCGACTCTAGGCCCTCA         <- Low coverage (few reads)
 -----------------------------------
 GGCGTCTATATCTCGGCTCTAGGCCCTCATTTTTT   <- Genome
 -----------------------------------
     TCTATATCTCGGCTCTAGG
 GGCGTCTATATCTCG                       <- Higher coverage (many reads)
 GGCGTCGATATCT
 ...

The Third Law: Repeats Are Evil

Consider the string a_long_long_long_time. If we try to find the shortest superstring from its 6-mers, the greedy algorithm maximizes overlap and produces a_long_long_time—collapsing one repeat:

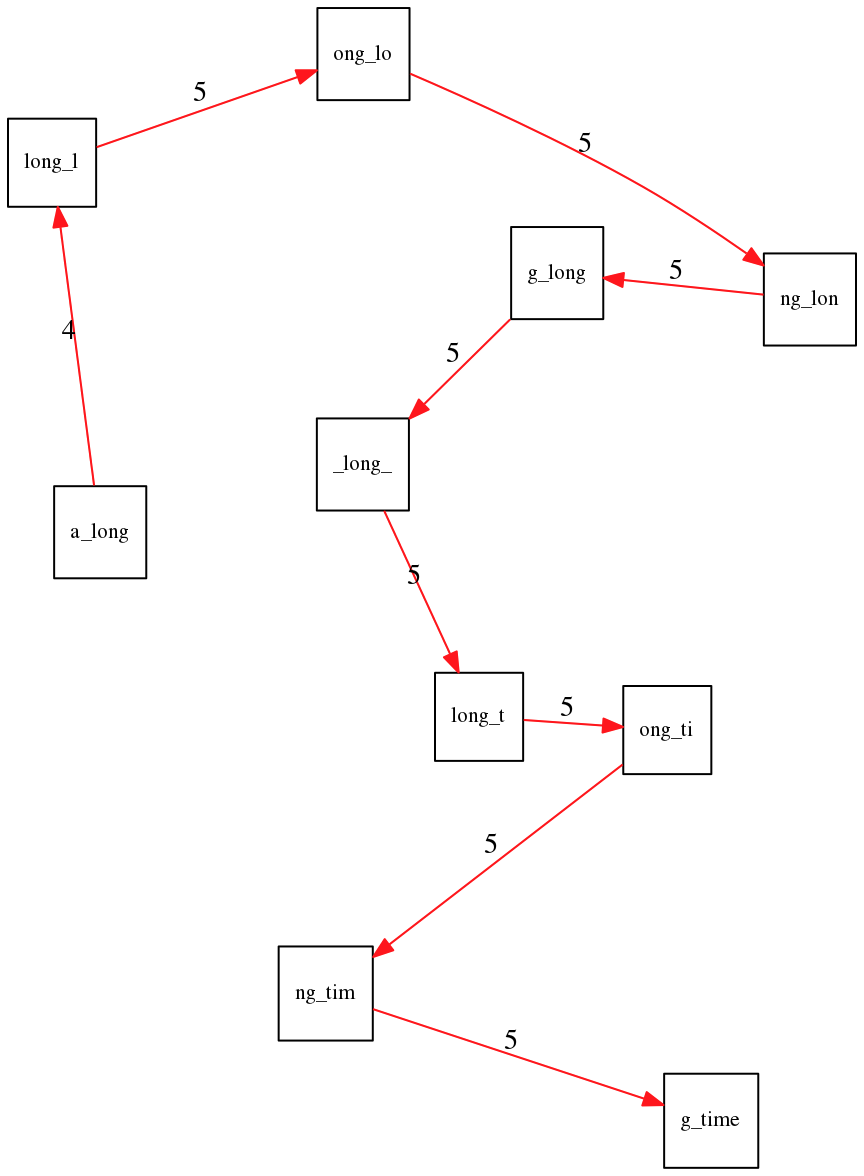

Greedy path through the overlap graph of `a_long_long_long_time`. Maximizing overlap yields the wrong (shorter) answer.

The correct path has a lower total overlap but produces the right string:

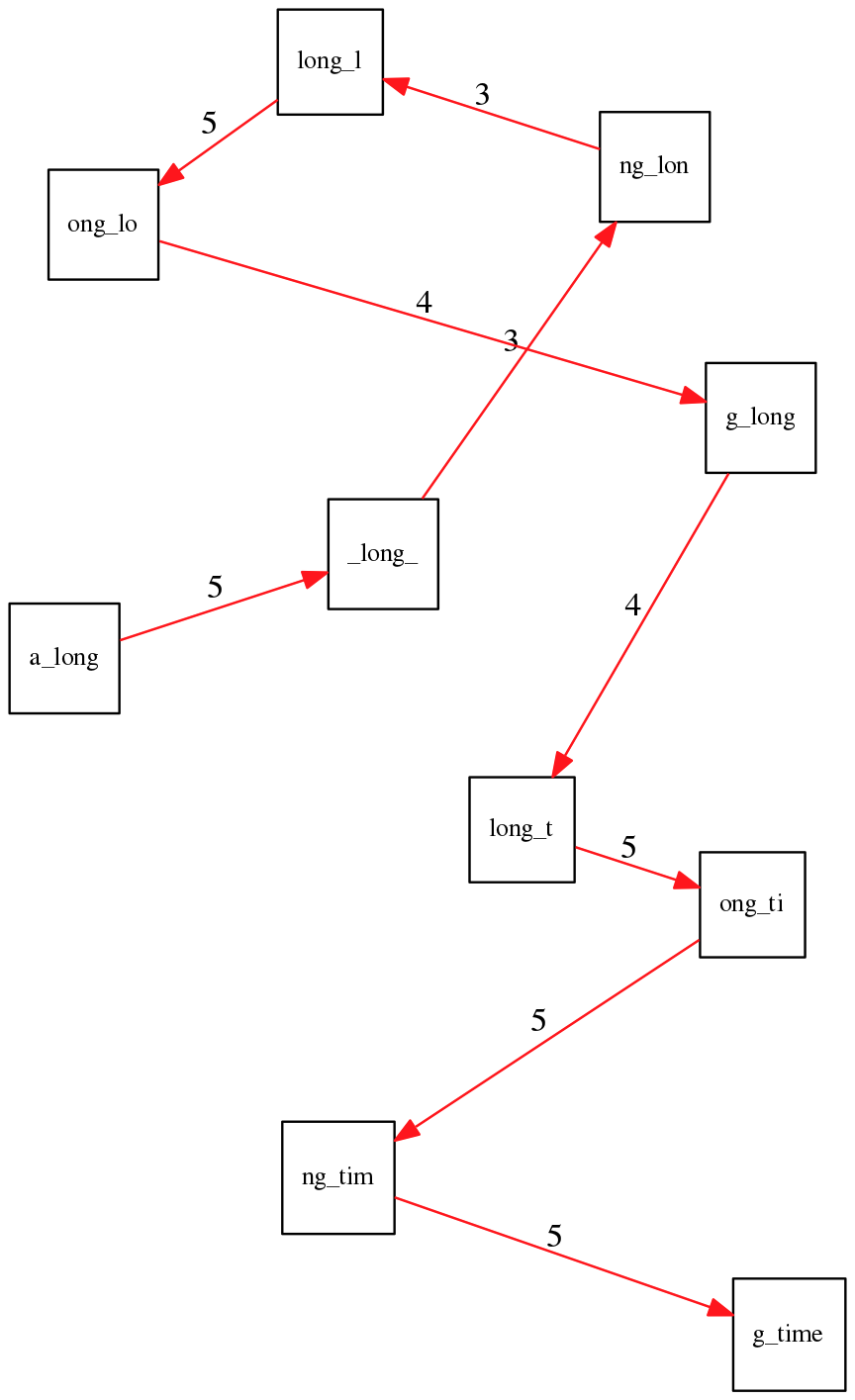

Correct path preserving all three repeats. Total overlap is lower (39 vs 44) but the reconstruction is accurate.

This is a fundamental problem: repeats shorter than the read length cannot be resolved. They produce ambiguous paths in the assembly graph.

6. Graph-Based Assembly

Finding overlaps between all reads defines a directed graph. Edges connect reads whose suffix matches another read’s prefix. The assembly problem becomes finding a path through this graph that reconstructs the genome.

6.1 Overlap Graphs and Hamiltonian Paths

In an overlap graph, each node is a read and each edge represents an overlap between two reads. Reconstructing the genome means finding a path that visits every node exactly once—a Hamiltonian path.

For the 3-mer collection from Section 3, the overlap graph connects every pair of 3-mers that share a 2-mer overlap:

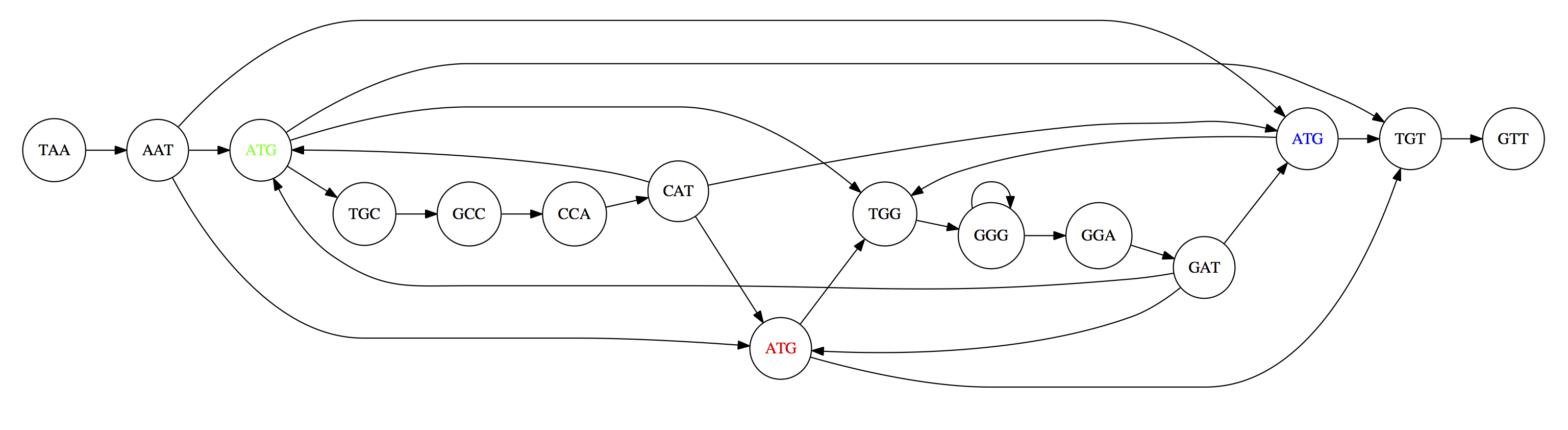

Overlap graph for the 15 3-mers. Each node is a 3-mer; each edge indicates a 2-base overlap.

The three copies of ATG create ambiguity: multiple Hamiltonian paths exist, producing different genome reconstructions:

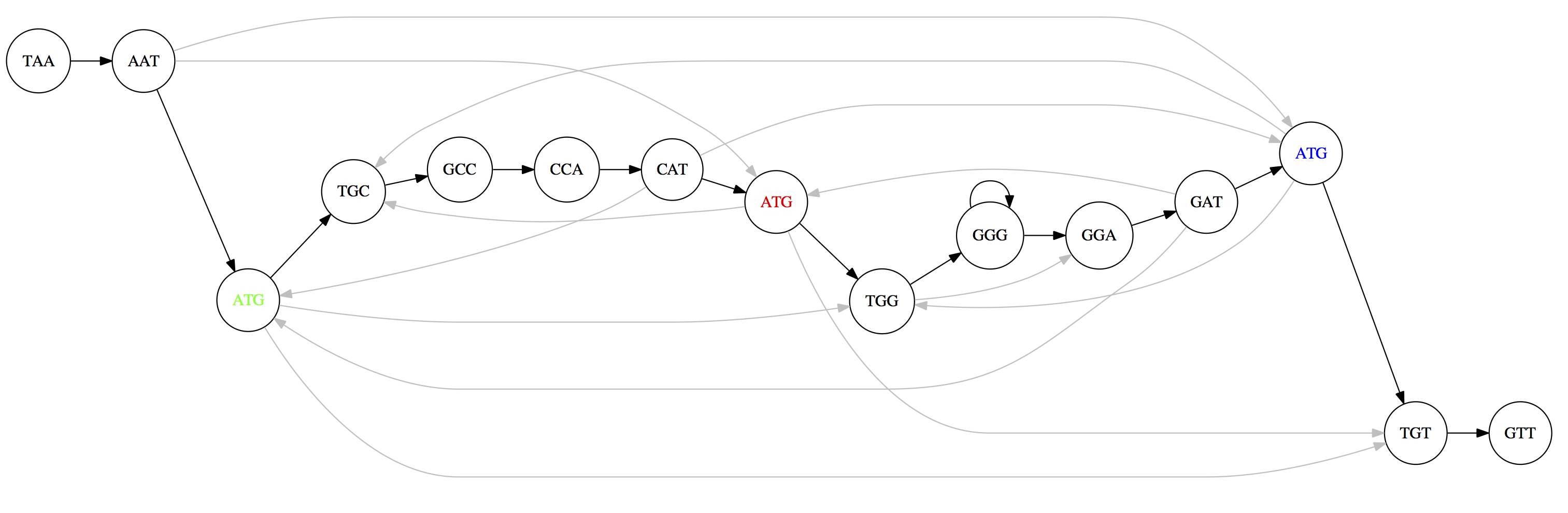

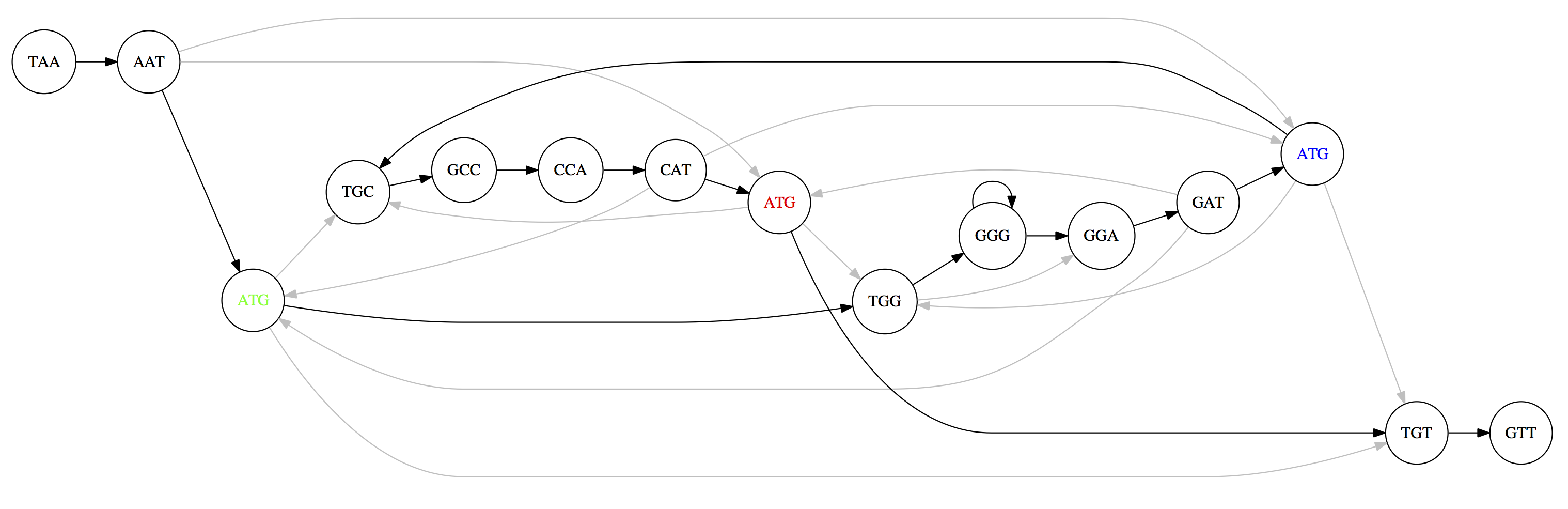

Two Hamiltonian paths through the overlap graph, producing `TAATGCCATGGGATGTT` (top) and `TAATGGGATGCCATGTT` (bottom). Only one is correct.

The problem: finding a Hamiltonian path is NP-complete—there is no efficient algorithm guaranteed to find the solution for large graphs. For a bacterial genome with millions of reads, this is computationally intractable.

6.2 De Bruijn Graphs and Eulerian Paths

Nicolaas de Bruijn (1918–2012) proposed a different graph representation that transforms the problem from NP-complete to efficiently solvable.

In a de Bruijn graph:

Each edge represents a k-mer
Each node represents a (k-1)-mer (the prefix or suffix of a k-mer)
Two k-mers are connected if the suffix of one equals the prefix of the other

For the genome AAABBBBA with \(k = 3\):

3-mers: AAA, AAB, ABB, BBB, BBB, BBA

        AA → AB → BB → BA
         ↺         ↺

Each edge is a k-mer. Each node is a distinct (k-1)-mer:

K-mers assigned to edges. Nodes represent the (k-1)-mer overlaps between consecutive k-mers.

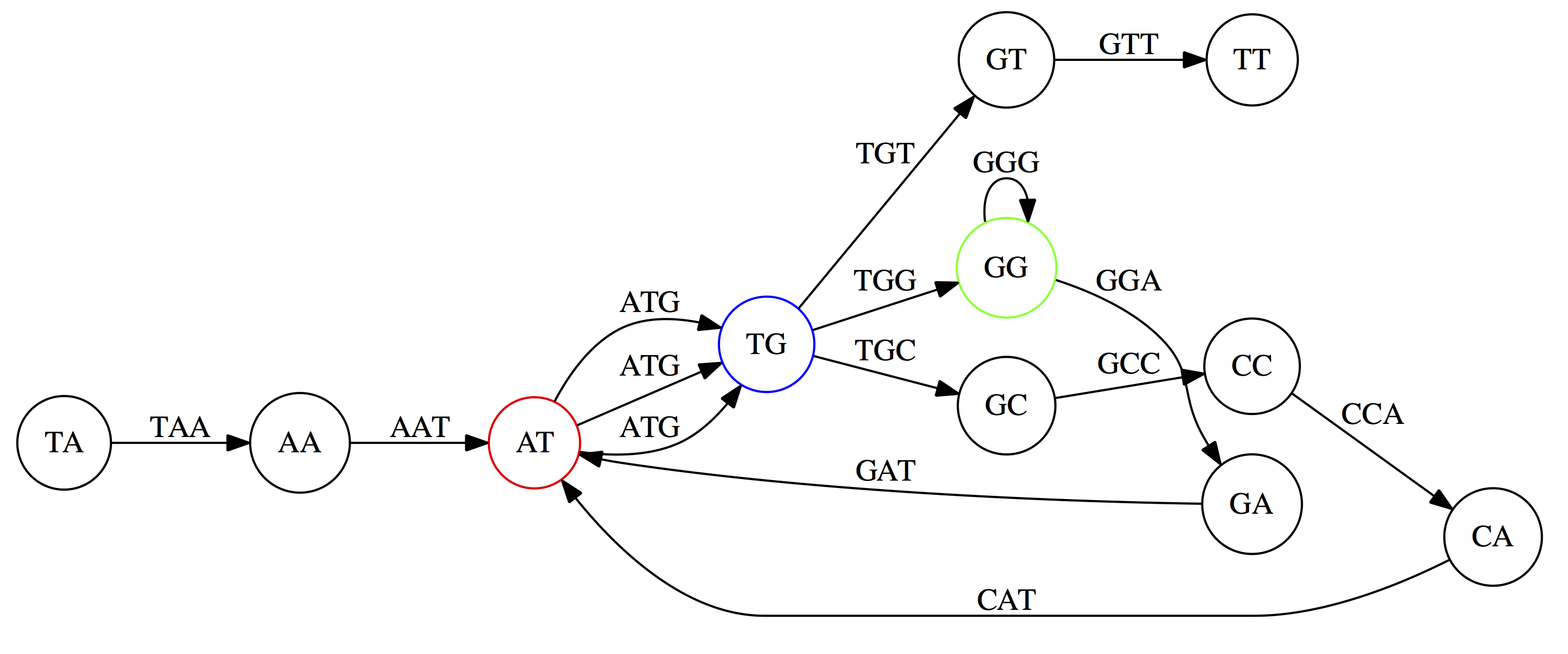

Identical nodes are glued together, simplifying the graph:

De Bruijn graph after gluing identical nodes. The graph is much simpler than the overlap graph.

Reconstructing the genome now means finding a path that visits every edge exactly once—an Eulerian path:

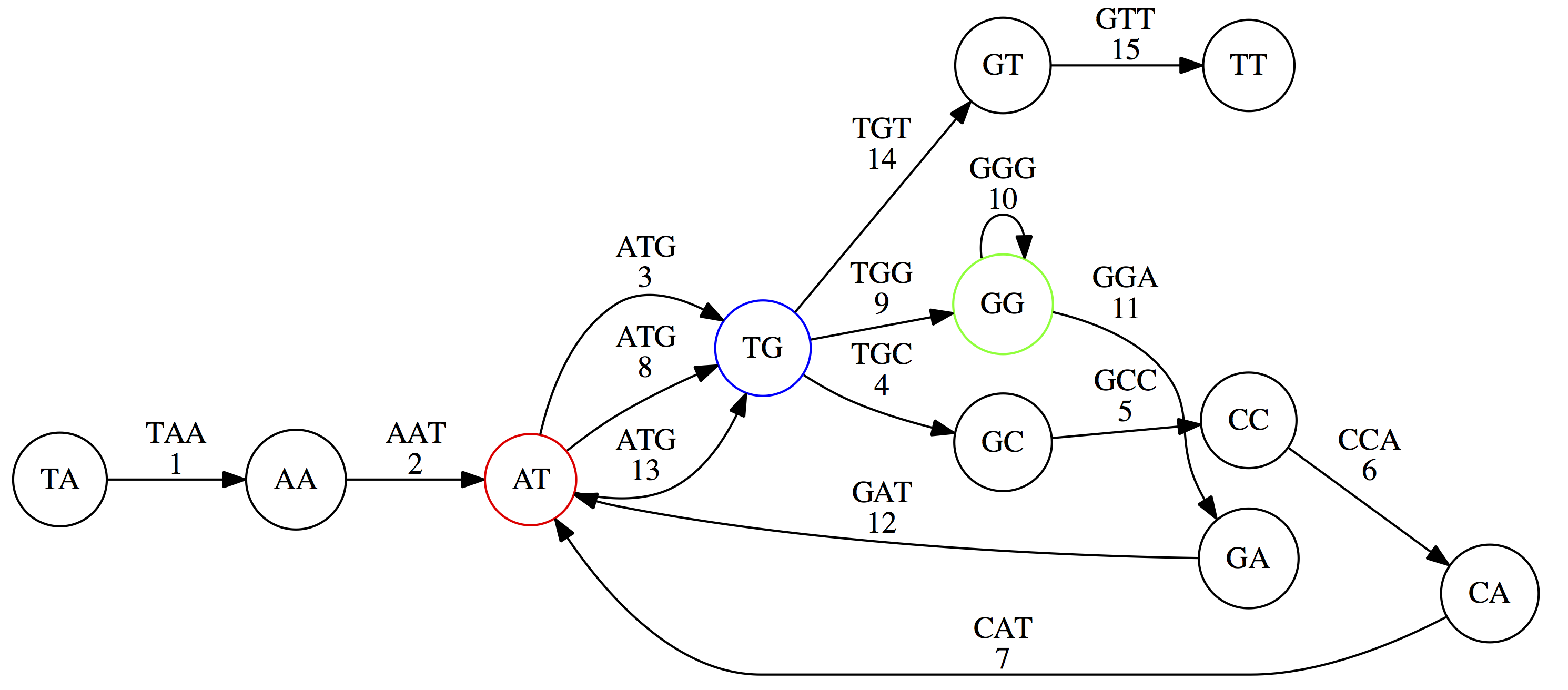

Eulerian paths through the de Bruijn graph. Numbering of edges shows the order of traversal, reconstructing the genome.

Unlike the Hamiltonian path problem, Euler proved in 1736 that Eulerian paths can be found efficiently.

Euler’s Theorem

A connected directed graph has an Eulerian path if and only if every node is balanced (number of incoming edges equals number of outgoing edges), with at most two exceptions (the start and end nodes). This can be checked and solved in linear time.

6.3 The Bridges of Konigsberg

Euler’s insight originated from a famous puzzle: can you walk through the city of Konigsberg (now Kaliningrad) crossing each of its seven bridges exactly once?

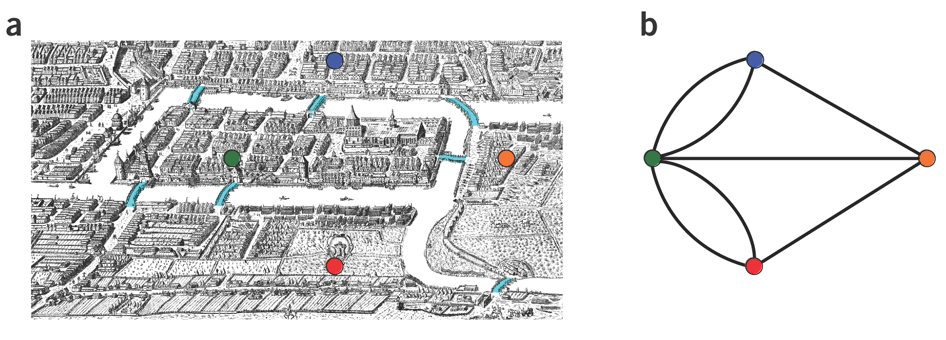

The Bridges of Konigsberg. (a) A map of old Konigsberg with four land areas. (b) The bridge graph: each land area is a node, each bridge is an edge. All nodes are unbalanced, so no Eulerian path exists. From Compeau et al. (2011) [2].

Euler proved this is impossible because all nodes in the graph have odd degree—an odd number of edges—so no Eulerian path exists. This was the birth of graph theory in 1736, and the same mathematics underlies modern genome assembly.

7. Overlap Graphs vs. De Bruijn Graphs

Property	Overlap Graph	De Bruijn Graph
Nodes represent	Reads	(k-1)-mers
Edges represent	Overlaps between reads	k-mers
Assembly = finding	Hamiltonian path (visit every node once)	Eulerian path (visit every edge once)
Computational complexity	NP-complete	Linear time
Construction	All-vs-all pairwise comparison, O(n\(^2\))	k-mer decomposition via hash tables
Best for	Long reads (ONT, PacBio)	Short reads (Illumina)
Repeat handling	Better—long reads span repeats	Sensitive to k-mer size
Error tolerance	More robust	Errors create spurious nodes/edges

Modern short-read assemblers (SPAdes, MEGAHIT) use de Bruijn graphs. Long-read assemblers (Flye, Hifiasm) use overlap-based approaches, leveraging the fact that long reads can span most repeats directly.

Repeats also cause ambiguity in de Bruijn graphs. Without edge numbering, multiple Eulerian walks are possible:

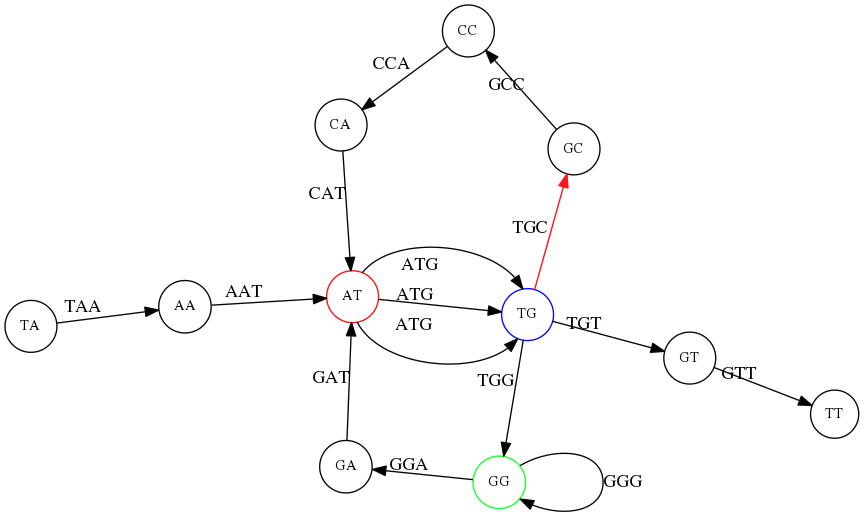

Eulerian walk #1: at the `TG` node we turn up first, producing `TAATGCCATGGGATGTT`.

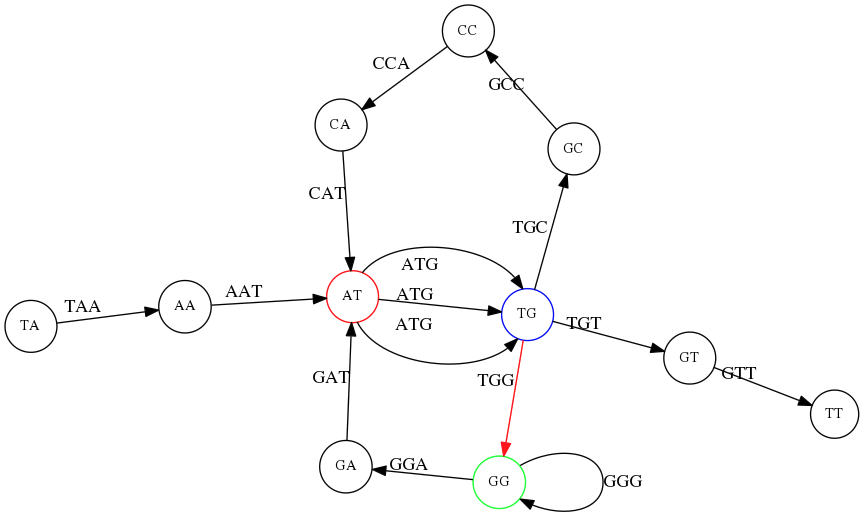

Eulerian walk #2: at the `TG` node we turn down first, producing `TAATGGGATGCCATGTT`. Only one of these is correct.

8. K-mer Size and Repeat Resolution

The choice of \(k\) is critical for de Bruijn graph assembly. Repeats shorter than \(k\) are resolved; repeats longer than \(k\) create ambiguous paths.

For the genome TAATGCCATGGGATGTT with the repeated 3-mer ATG:

k = 3 — the de Bruijn graph has multiple Eulerian paths; the repeat is unresolved:

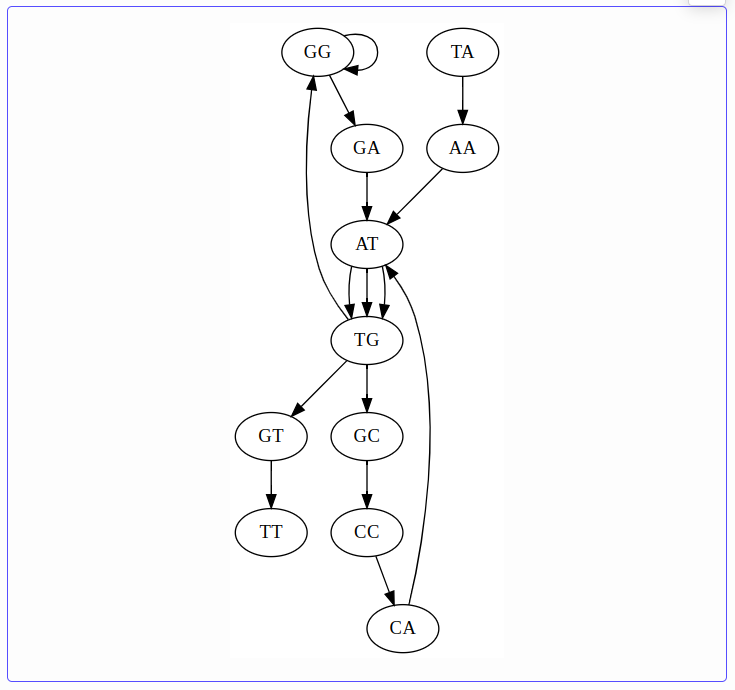

De Bruijn graph with k=3. Multiple paths exist due to the repeated ATG.

k = 4 — complexity decreases, but ambiguity remains:

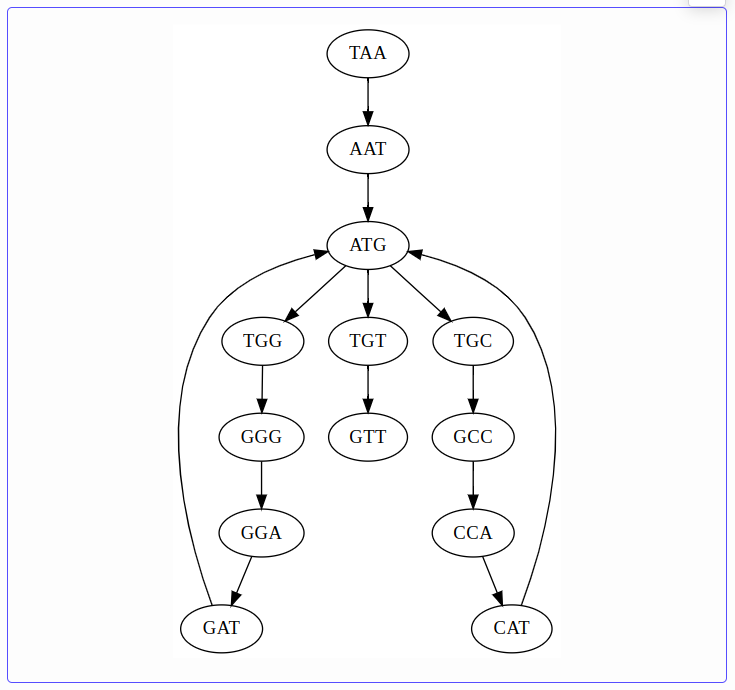

De Bruijn graph with k=4. Fewer alternative paths, but the repeat still causes branching.

k = 5 — only one path exists; \(k\) exceeds the repeat length and the assembly is unambiguous:

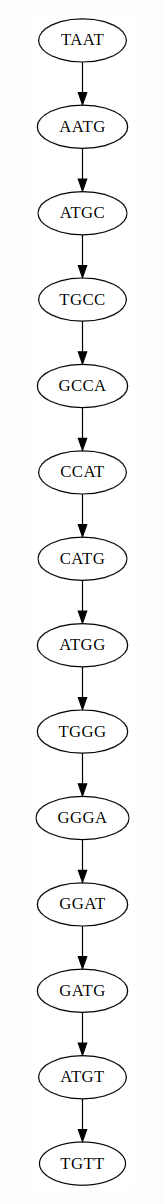

De Bruijn graph with k=5. A single Eulerian path reconstructs the genome correctly.

This is why longer reads are so valuable: they span repeats that short k-mers cannot resolve. Oxford Nanopore reads of 10–100 kb can span most bacterial repeats (insertion sequences ~1 kb, transposons ~5 kb, rRNA operons ~5 kb), enabling complete, single-contig assemblies.

The Fundamental Trade-off

Larger k: resolves more repeats but requires higher coverage (fewer k-mers per read) and is more sensitive to sequencing errors
Smaller k: tolerates lower coverage and errors but collapses repeats
Modern assemblers use multiple k-mer sizes simultaneously to balance this trade-off

9. Assembly Quality Metrics

How do we evaluate an assembly? Three key terms:

Contig — a contiguous sequence reconstructed from overlapping reads. An assembly typically consists of multiple contigs separated by gaps.
Scaffold — an ordered set of contigs with estimated gap sizes between them. Scaffolding uses paired-end or long-read information to order and orient contigs.
N50 — the length of the shortest contig such that contigs of that length or longer cover at least 50% of the total assembly. Higher N50 = more contiguous assembly.

To compute N50: sort contigs from longest to shortest, then cumulatively add their lengths. The contig that pushes the running total past 50% of the genome size is the N50.

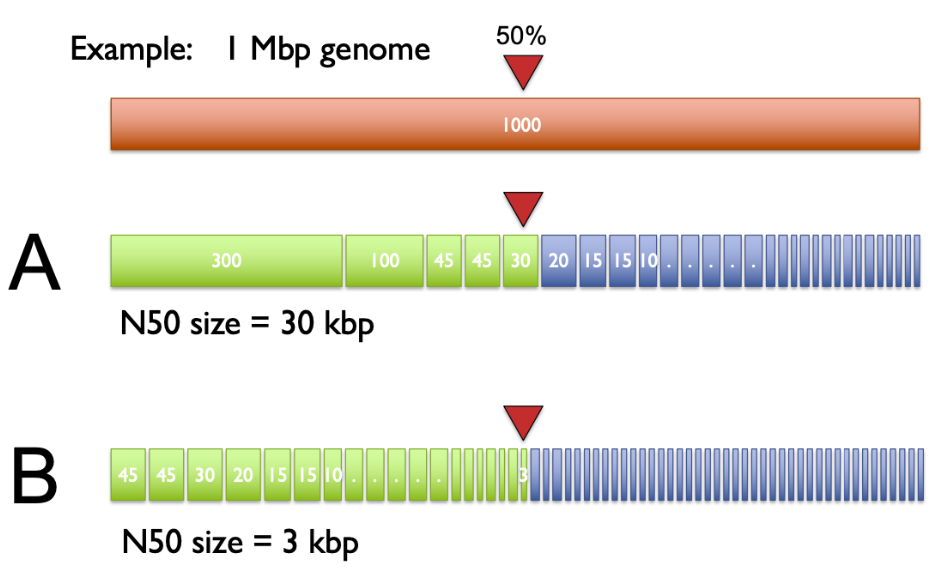

N50 illustrated. Contigs are sorted by size; the N50 contig is the one where the cumulative sum reaches 50% of the genome. Image credit: Mike Schatz.

For a bacterial genome like S. aureus (~2.8 Mb):

A short-read-only assembly might produce 50–200 contigs with N50 of 50–200 kb
A long-read assembly with Flye typically produces 1–3 contigs with N50 equal to the chromosome length (~2.8 Mb)

Connecting to Your MRSA Assembly

The Flye assemblies you are running from Lecture 22 should ideally produce a single circular contig for the S. aureus chromosome (~2.8 Mb) plus separate small contigs for plasmids. We will evaluate your assembly results using these metrics in the next class.

10. Example: Assembling an MRSA Genome in Galaxy

To make this concrete, here is the workflow we followed to assemble one of the MRSA isolates from the Hisatsune et al. dataset using Galaxy.

10.1 Download and QC

We downloaded both Illumina (paired-end) and Oxford Nanopore (single-end) reads from SRA using the Faster Download and Extract Reads in FASTQ tool (see Lecture 22 for details). Illumina reads were quality-trimmed with fastp—removing adapters and filtering bases below Q20, as in our variant-calling pipeline.

10.2 Filtering Nanopore Reads with Filtlong

Raw Nanopore reads vary enormously in length and quality. Before assembly, we filter them with Filtlong—a tool designed specifically for this purpose.

Filtlong scores each long read using three criteria:

Length — longer reads are more valuable because they span more repeats
Mean quality — higher average quality scores are preferred
Window quality — the worst-quality window in a read drags down its score (a single bad region makes the whole read less useful)

When Illumina reads are provided as a reference, Filtlong adds a fourth criterion: k-mer match — how well the long read’s k-mers match those found in the (more accurate) short reads. This provides an external quality signal independent of the Nanopore quality scores.

Filtlong then ranks all reads by their composite score and retains the best subset—either a target number of bases or reads above a minimum length threshold. In the GTN tutorial, we set a minimum length of 1,000 bp.

The effect is dramatic. Here is the read length distribution before filtering:

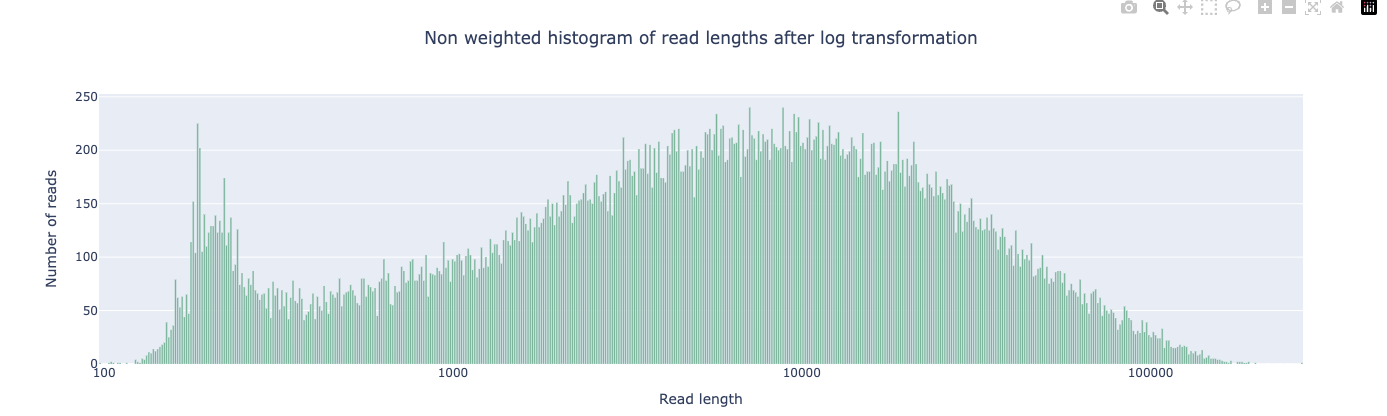

Read length distribution before Filtlong filtering (NanoPlot). Note the large peak of very short reads (<500 bp) that would add noise without spanning any repeats.

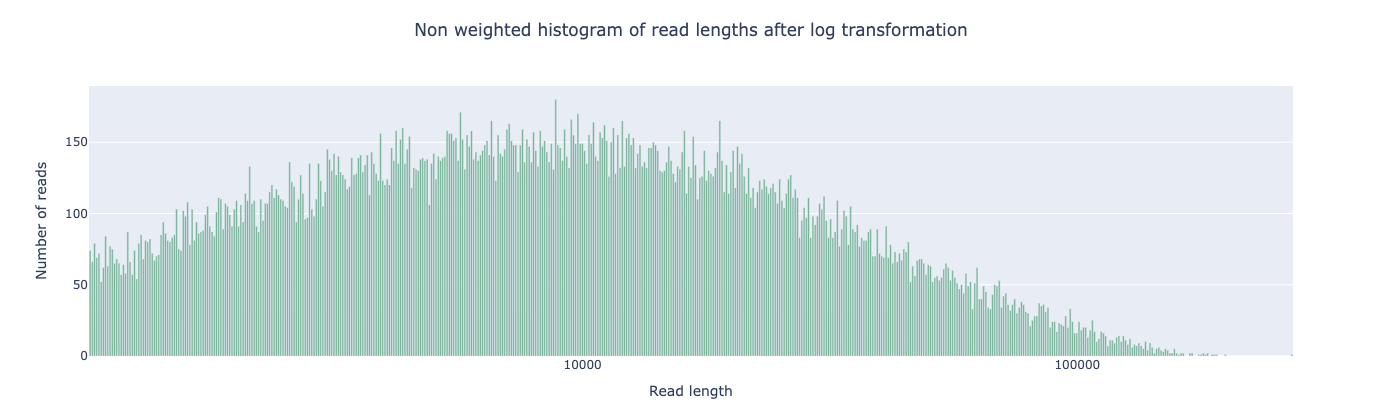

And after filtering:

Read length distribution after Filtlong filtering. Short reads have been removed; the remaining reads are concentrated in the 1–100 kb range, ideal for assembly.

The short-read peak below ~500 bp is gone. These fragments are too short to contribute useful overlap information and would only add noise to the assembly graph. The remaining reads—concentrated in the 1–100 kb range—are long enough to span most S. aureus repeats.

10.3 Assembly with Flye

The filtered Nanopore reads were assembled with Flye in Nanopore corrected mode. For a typical S. aureus isolate, Flye produces a single circular contig (~2.8 Mb) for the chromosome plus 0–3 small contigs for plasmids. The draft assembly is then polished with the Illumina reads using BWA-MEM2 (alignment) followed by Polypolish (error correction), reducing the per-base error rate from ~1% (Nanopore-level) to <0.01% (Illumina-level).

11. Modern Assemblers

The theory above translates into real tools. This section surveys the major assemblers in current use, organized by the type of data they were designed for.

11.1 Short-Read Assemblers

SPAdes

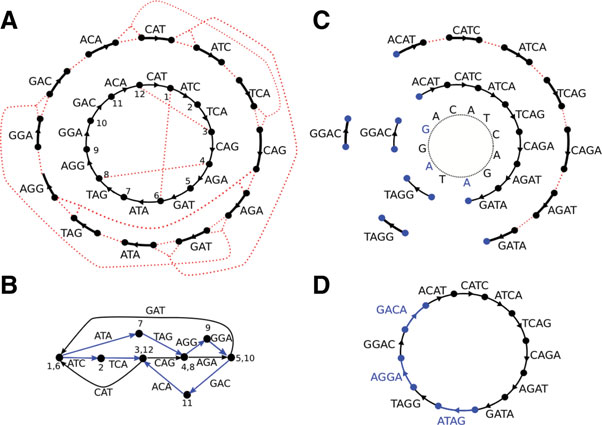

SPAdes [4] builds multi-sized de Bruijn graphs—constructing graphs at multiple values of \(k\) and merging them. This addresses the fundamental trade-off: small \(k\) captures low-coverage regions while large \(k\) resolves repeats. SPAdes iteratively increases \(k\) and uses paired-end information (k-bimers) to bridge gaps. Originally designed for single-cell sequencing (where coverage is extremely uneven due to MDA amplification bias), SPAdes became the default short-read assembler for bacterial genomes. Variants include metaSPAdes for metagenomics and rnaSPAdes for transcriptome assembly.

Minia

Minia [18] demonstrated that a de Bruijn graph for an entire human genome can be stored in constant memory (~5.7 GB) using a Bloom filter—a probabilistic data structure that tests set membership without storing the elements themselves. False positives (phantom k-mers not in the data) are handled by a small auxiliary “critical false positive” table. This made Minia the first assembler capable of assembling a human genome on a desktop computer. While Minia’s output (unitigs/contigs) is less polished than SPAdes, its memory-efficient representation was foundational—the same Bloom filter approach influenced MEGAHIT’s succinct de Bruijn graph and the broader GATB (Genome Assembly & Analysis Tool Box) library.

MEGAHIT

MEGAHIT [5] uses a succinct de Bruijn graph (SdBG)—a compressed representation that dramatically reduces memory consumption. Like SPAdes, it iterates over multiple \(k\)-mer sizes. MEGAHIT assembled a 252 Gbp soil metagenome on a single compute node, making it the tool of choice for large-scale metagenome assembly on limited hardware.

11.2 Long-Read Assemblers

Canu

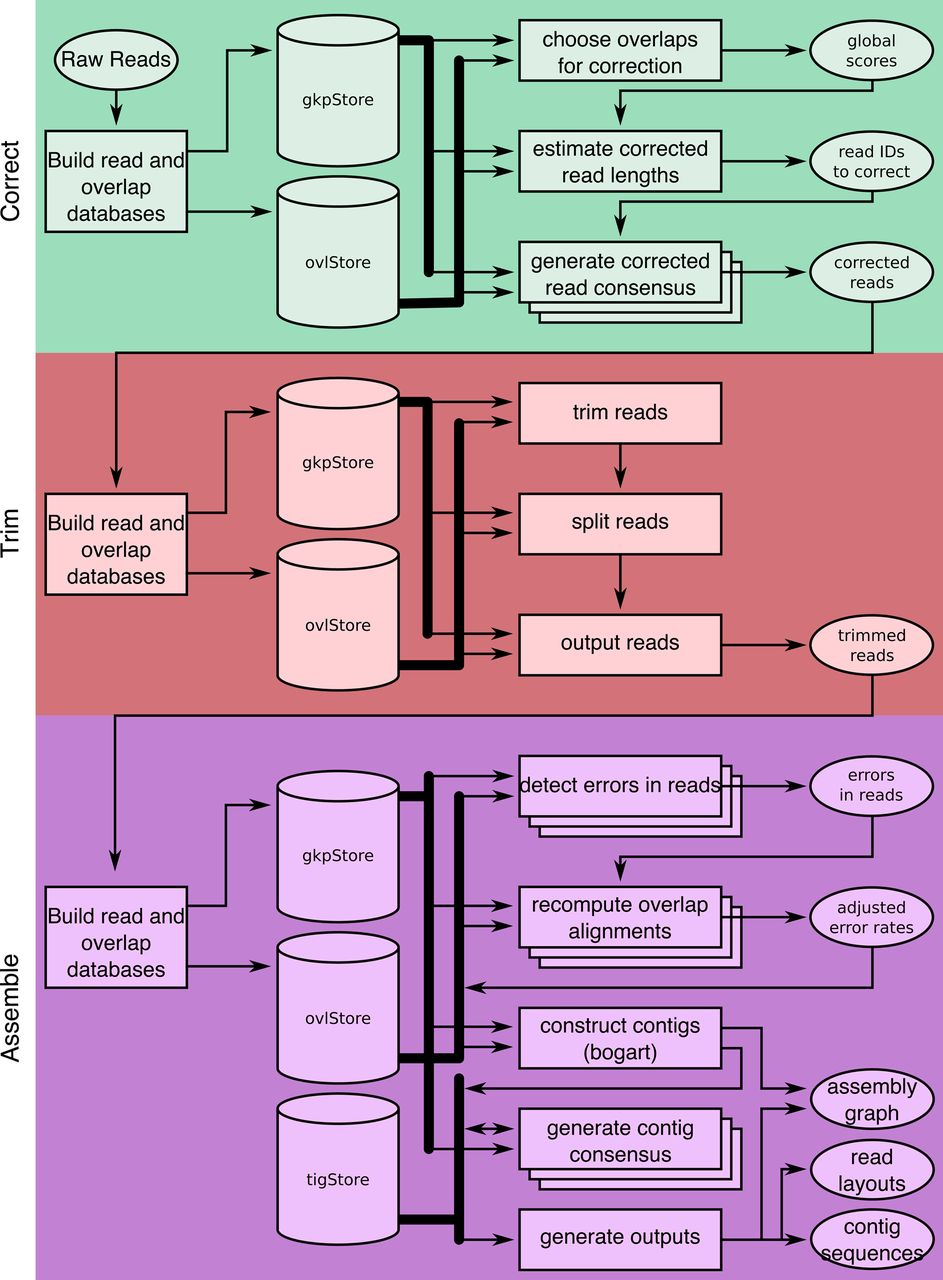

Canu [6] follows the classic Overlap-Layout-Consensus (OLC) paradigm in three explicit stages: correct reads, trim low-quality regions, then assemble. Its key innovation is adaptive k-mer weighting—inspired by tf-idf from information retrieval—which downweights repetitive k-mers during overlap detection so that unique overlaps dominate.

Flye

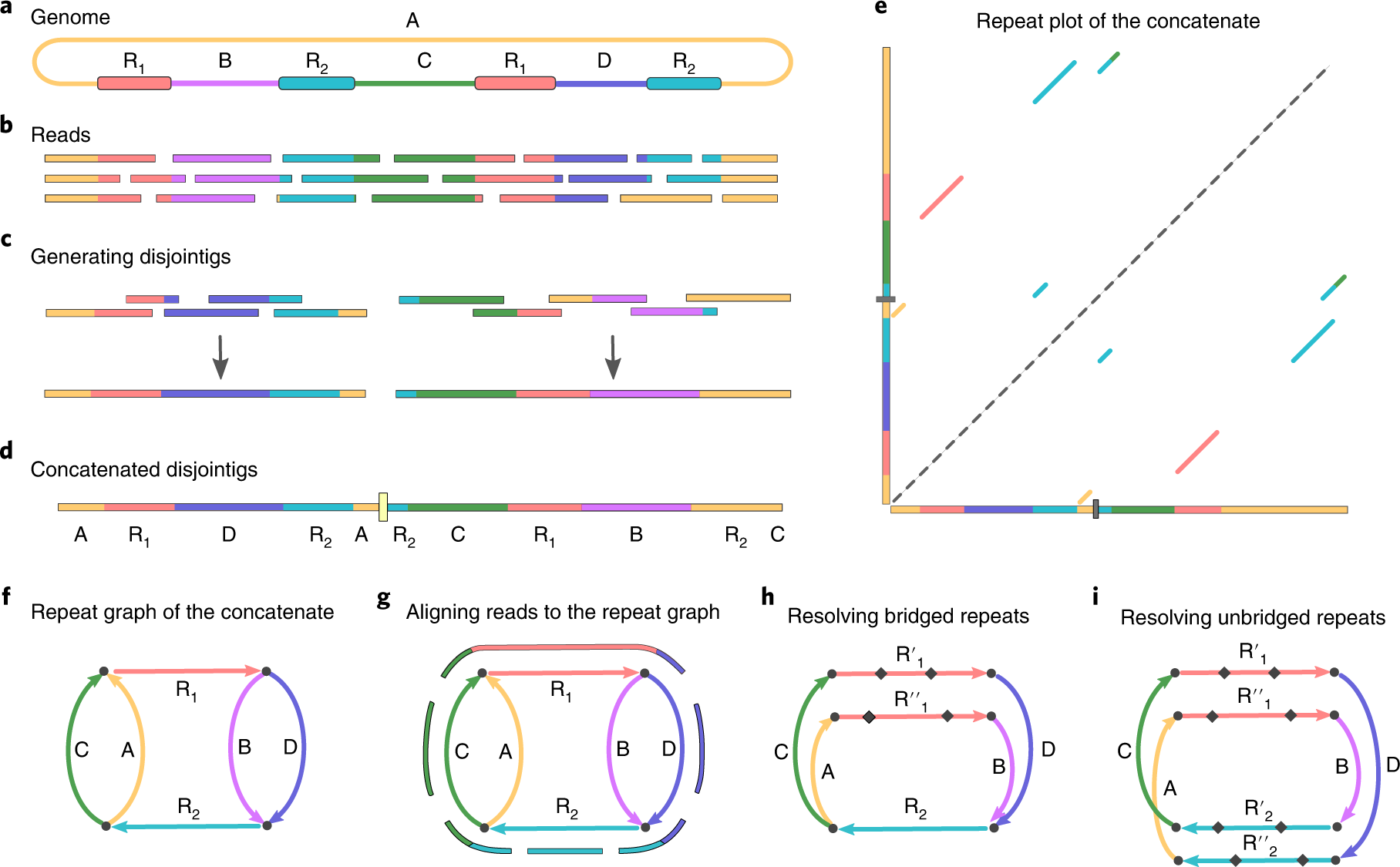

Flye [3] takes a fundamentally different approach: it skips error correction entirely and instead builds a repeat graph directly from noisy reads. Flye first generates “disjointigs”—arbitrary concatenations of reads that traverse the genome—then identifies repeats by self-alignment and constructs a graph where edges represent unique or repetitive genomic segments. Reads are then aligned back to the graph to resolve which repeat copies connect to which unique regions.

This approach is an order of magnitude faster than correct-then-assemble methods like Canu. Flye is the assembler you used in Lecture 22 for your MRSA data.

Miniasm

Miniasm [7] implements the most extreme version of OLC: overlap and layout only, no consensus. It takes raw overlaps from minimap and produces an assembly graph in minutes—a bacterial genome assembles in seconds. The output is unpolished (error rate matches the reads), so miniasm is typically paired with Racon or Medaka for polishing. Miniasm is used as a building block inside other tools like Unicycler and Autocycler.

Shasta

Shasta [8] uses a modified OLC approach with run-length encoding—compressing homopolymers before overlap detection, which eliminates the most common Nanopore error type. Shasta assembled a complete human genome from Nanopore reads in under 6 hours on a single machine.

NextDenovo

NextDenovo [9] uses a two-module correct-then-assemble strategy (NextCorrect + NextGraph) with a string graph approach. It achieves comparable or better results than Canu at significantly lower computational cost, making it a strong choice for large-scale long-read assembly projects.

11.3 HiFi-Specific Assemblers

PacBio HiFi reads (>99% accuracy, 10–20 kb) have spawned assemblers that exploit their low error rate.

Hifiasm

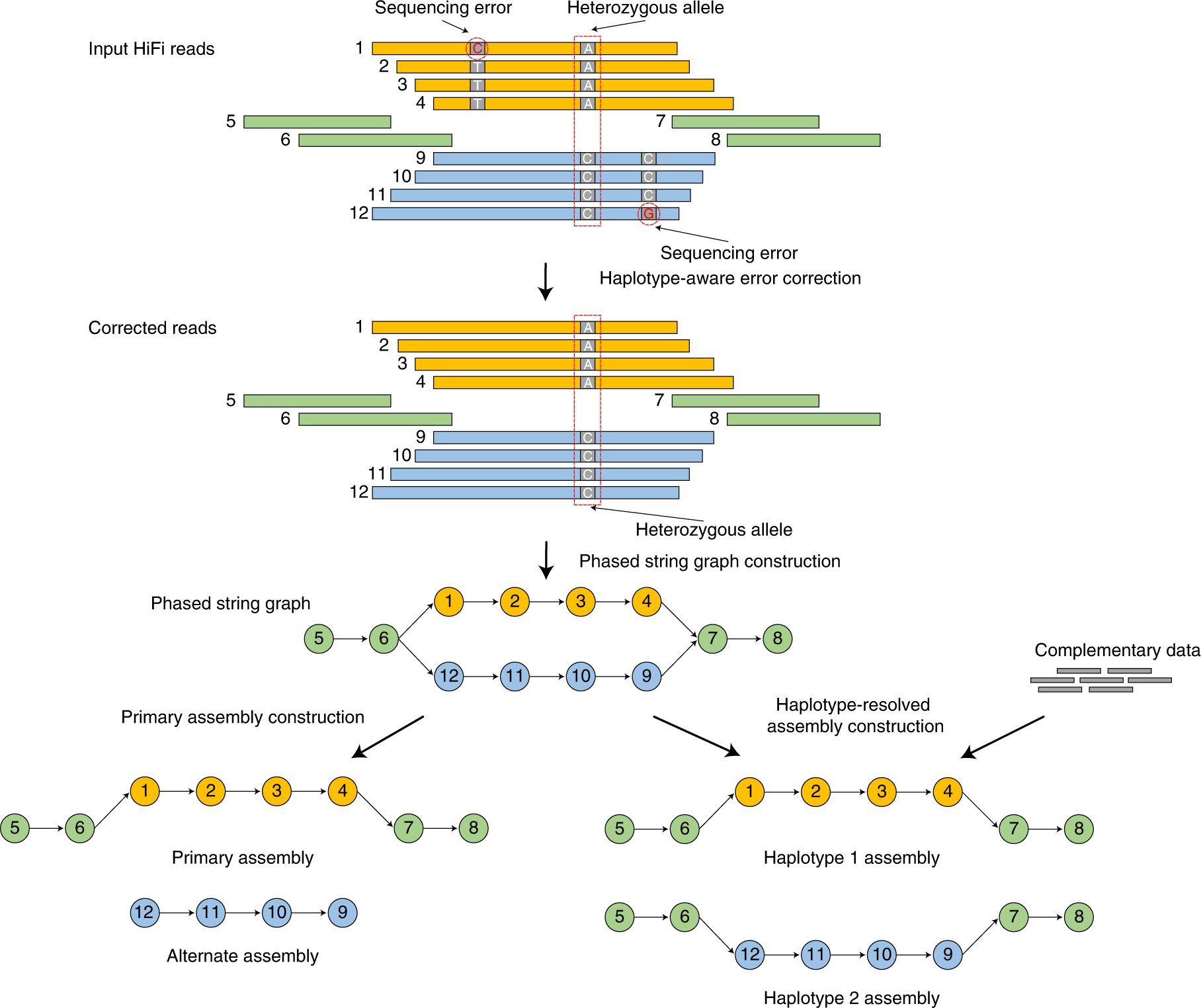

Hifiasm [10] builds a phased assembly graph that preserves haplotype information throughout the assembly process. Standard assemblers collapse heterozygous alleles; hifiasm keeps them separate. It performs haplotype-aware error correction that fixes sequencing errors while preserving true heterozygous variants, then constructs a graph where reads from the same haplotype connect to each other. With trio data (parental short reads) or Hi-C data, hifiasm produces fully phased diploid assemblies.

LJA (La Jolla Assembler)

LJA [11] uses a multiplex de Bruijn graph that adapts \(k\)-mer size locally across the graph—using smaller \(k\) in low-complexity regions and larger \(k\) near repeats. LJA reduces the HiFi read error rate by three orders of magnitude before graph construction, producing five-fold fewer misassemblies than other HiFi assemblers.

11.4 Hybrid and T2T Assemblers

MaSuRCA

MaSuRCA [16] (Maryland Super-Read Celera Assembler) takes a unique approach to hybrid assembly: it converts short paired-end reads into super-reads—longer, highly accurate synthetic reads constructed by extending each read in both directions using the de Bruijn graph until a branch point is reached [17]. When long reads (PacBio or ONT) are available, MaSuRCA further combines super-reads with long reads to create mega-reads—long reads with short-read accuracy. The mega-reads are then assembled using a modified OLC assembler (CABOG). This approach has been particularly successful for large, repetitive plant genomes—MaSuRCA assembled the 4.3 Gb Aegilops tauschii (bread wheat progenitor) genome with an N50 of 487 kb.

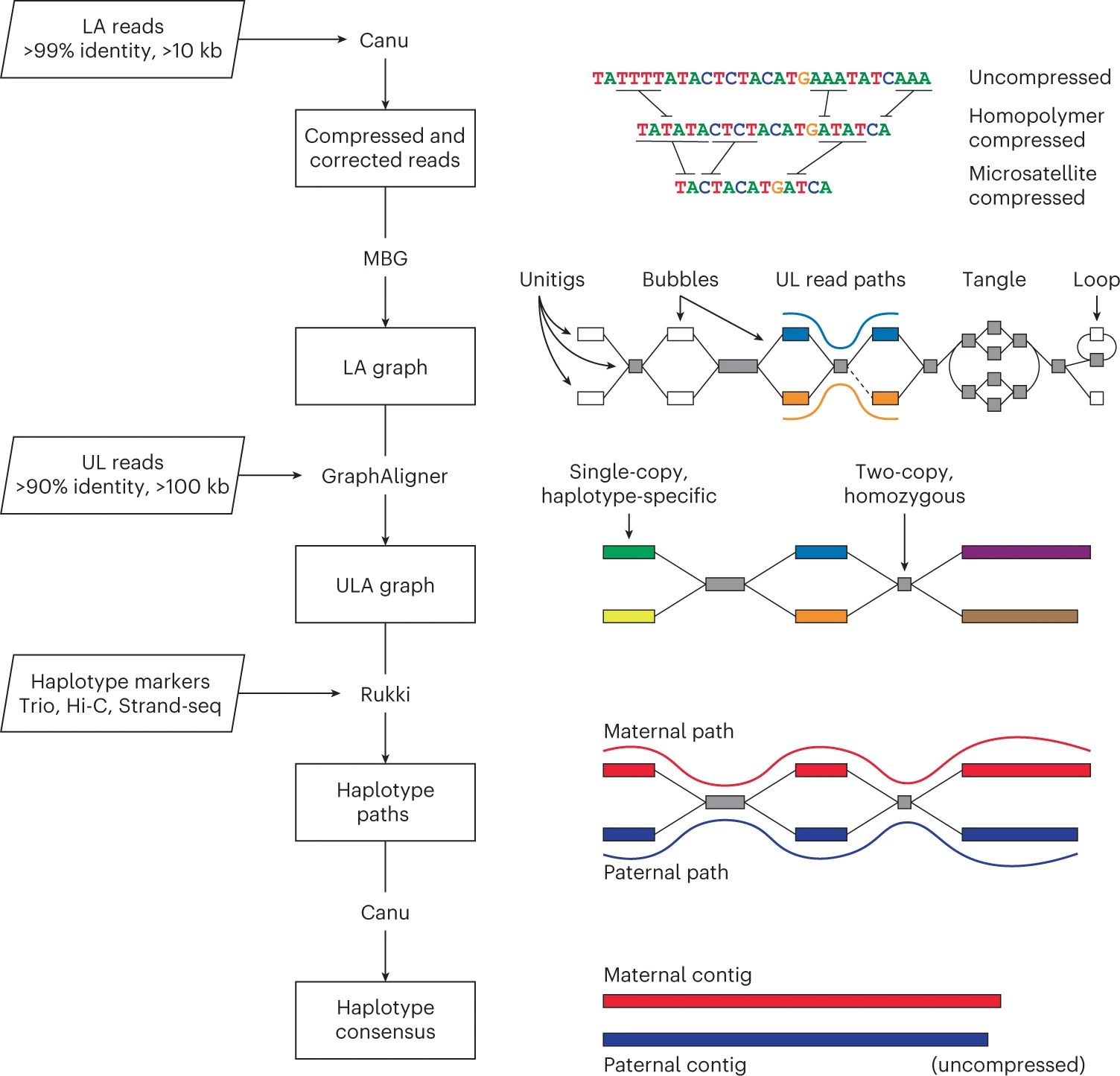

Verkko

Verkko [12] combines HiFi and ONT ultra-long reads to achieve telomere-to-telomere (T2T) phased diploid assembly. It builds a multiplex de Bruijn graph from HiFi reads, then uses ONT ultra-long reads (>100 kb) to traverse tangles and bubbles in the graph. Haplotype markers from trio or Hi-C data separate maternal and paternal paths.

Verkko assembled 20 of 46 diploid human chromosomes gap-free in its original publication. It is the assembler behind many of the T2T reference genomes being produced by the Human Pangenome Reference Consortium.

Hybracter

Hybracter [13] is an automated pipeline (not a novel algorithm) that orchestrates Flye for long-read assembly, then polishes with short reads if available. It automatically classifies contigs as chromosome vs. plasmid and recovers small plasmids that other assemblers miss. Hybracter is designed for bacterial genomics at scale—processing hundreds of isolates with minimal user input.

11.5 Consensus Assemblers

Autocycler

Autocycler [14] takes a consensus meta-assembly approach: it runs multiple assemblers (Flye, miniasm, etc.) on subsampled read sets, then builds a compacted de Bruijn graph from the resulting assemblies and derives a consensus. The key insight, demonstrated by its predecessor Trycycler [15]: combining multiple assembly attempts produces lower error rates than any single assembler. Autocycler automates this process entirely (Trycycler required manual curation). Written in Rust for performance.

11.6 Summary Table

Assembler	Algorithm	Input data	Best for
SPAdes [4]	Multi-sized de Bruijn graph	Illumina	Bacterial/small genomes, single-cell
Minia [18]	Bloom filter de Bruijn graph	Illumina	Memory-limited, large genomes
MEGAHIT [5]	Succinct de Bruijn graph	Illumina	Metagenomes, memory-limited
Canu [6]	OLC with tf-idf weighting	ONT, PacBio	Accurate long-read assembly
Flye [3]	Repeat graph	ONT, PacBio	Fast long-read assembly, bacteria to human
Miniasm [7]	OLC (no consensus)	ONT, PacBio	Ultra-fast draft assemblies
Shasta [8]	OLC with run-length encoding	ONT	Fast Nanopore-only, large genomes
NextDenovo [9]	String graph	ONT, PacBio	Cost-effective long-read assembly
Hifiasm [10]	Phased assembly graph	PacBio HiFi	Haplotype-resolved diploid genomes
LJA [11]	Multiplex de Bruijn graph	PacBio HiFi	Lowest misassembly rate
MaSuRCA [16]	Super-reads/mega-reads + OLC	Illumina +/- ONT/PacBio	Large, repetitive genomes (plants)
Verkko [12]	Hybrid de Bruijn + OLC	HiFi + ONT UL	T2T phased diploid assembly
Hybracter [13]	Pipeline (Flye + polishing)	ONT +/- Illumina	Automated bacterial assembly
Autocycler [14]	Consensus meta-assembly	ONT	Highest-accuracy bacterial genomes

Summary

Genome assembly reconstructs a genome from scrambled reads—a puzzle without the picture
Three laws: overlaps imply co-location; higher coverage is better; repeats are evil
Overlap graphs represent reads as nodes and overlaps as edges; assembly requires finding a Hamiltonian path (NP-complete)
De Bruijn graphs represent k-mers as edges and (k-1)-mers as nodes; assembly requires finding an Eulerian path (linear time)
Larger k resolves more repeats but needs more coverage; smaller k tolerates errors but collapses repeats
Long reads (ONT, PacBio) span repeats that short reads cannot resolve, enabling complete assemblies
N50 measures assembly contiguity: the contig length at which 50% of the genome is covered
Modern assemblers span a wide range: de Bruijn graph (SPAdes, MEGAHIT), OLC/repeat graph (Canu, Flye), phased graphs (hifiasm), and hybrid approaches (Verkko) for T2T assembly
