Lecture 21: Interval Operations for Genomic Coordinates

Learning Objectives

By the end of this lecture, you will be able to:

  • Distinguish 0-based half-open from 1-based closed coordinate systems
  • Read and write BED and GFF/GTF format files
  • Perform core interval operations: intersect, subtract, merge, complement, closest, and coverage
  • Use BEDTools in Galaxy to manipulate genomic intervals
  • Apply interval operations to filter and combine genomic annotations
  • Navigate the UCSC Genome Browser and recognize tracks as interval datasets

1. The Genome Browser: Intervals Everywhere

The UCSC Genome Browser is the most widely used tool for visualizing genomic data [4]. It displays a region of a reference genome as a horizontal coordinate axis, with datasets stacked vertically as tracks. Here we look at the human TP53 tumor suppressor gene on chromosome 17:

UCSC Genome Browser showing the TP53 locus on human chromosome 17 (hg38). Each horizontal band is a track—a dataset mapped to genomic coordinates.

The horizontal axis spans ~19 kb of chromosome 17. Every colored block, bar, or line in the image represents a genomic interval—a feature with a start and end position on the chromosome.

1.1 What Is a Track?

A track is a dataset projected onto genomic coordinates. Each feature within a track is an interval. The browser view above contains over a dozen tracks, each representing a different type of genomic annotation:

  • GENCODE / RefSeq gene models — exons (thick blocks) and introns (thin lines with arrows) defining transcript structure
  • OMIM Alleles — positions of disease-associated variants (single-base intervals)
  • Common dbSNP — known polymorphisms from dbSNP release 155
  • GTEx expression — tissue-specific expression levels (bar chart mapped to gene intervals)
  • ENCODE cCREs — candidate cis-regulatory elements (enhancers, promoters, insulators)
  • H3K27Ac — histone acetylation peaks marking active regulatory regions
  • Conservation (PhyloP) — per-base conservation scores across 100 vertebrates
  • Multiz alignments — cross-species sequence alignments (Rhesus, Mouse, Dog, Elephant, Chicken, Zebrafish)
  • RepeatMasker — repetitive elements (SINEs, LINEs, DNA transposons)

Zooming in reveals the individual interval features more clearly:

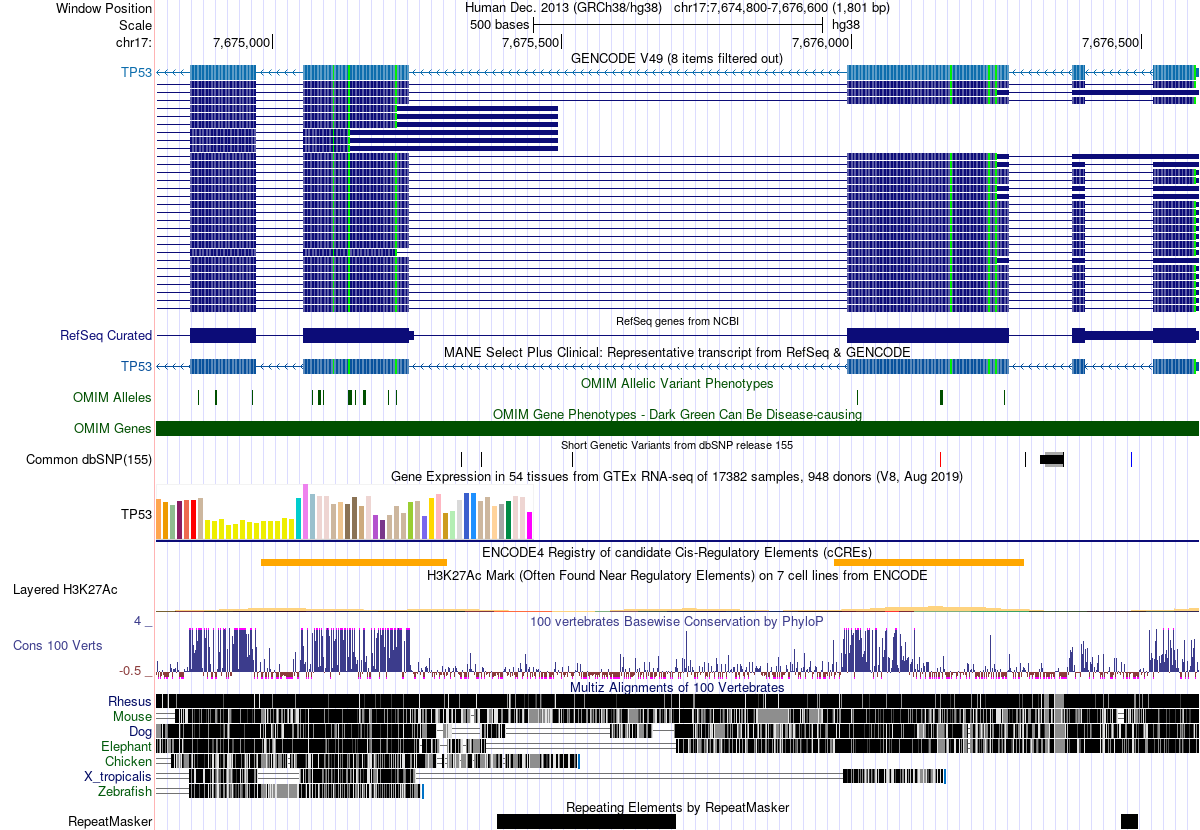

Zoomed view of the TP53 locus (~1.8 kb). Individual exons are visible as distinct blocks; introns as connecting lines. Each block is an interval with a precise start and end coordinate.

1.2 The Key Insight

Important

Every track in the genome browser is a collection of genomic intervals. Genes, repeats, regulatory elements, variants, aligned reads—all intervals. The browser is visualizing interval arithmetic. This lecture teaches you to perform that arithmetic yourself.

2. What Is a Genomic Interval?

Every genomic feature—a gene, an exon, a variant, a ChIP-seq peak, an aligned read—can be represented as an interval: a contiguous stretch of a chromosome defined by three values:

(chromosome, start, end)

Interval arithmetic lets us ask relational questions about these features: Which variants fall inside genes? Which peaks overlap promoters? What fraction of the genome is covered by repeats? The answers come from a small set of set-theoretic operations on intervals.

Note

In Lecture 20 we produced VCF files containing variant positions, used GTF gene annotations, and mentioned BEDTools as a key toolkit. This lecture formalizes the interval algebra behind those operations.

3. Coordinate Systems

Genomics uses two coordinate conventions. Confusing them causes off-by-one errors—the single most common bug in bioinformatics pipelines.

The choice is not arbitrary. In 1982, Edsger Dijkstra argued in his note “Why numbering should start at zero” [6] that 0-based half-open intervals are the most natural convention for computing. Two properties make them superior: the length of an interval [a, b) is simply b - a, and two adjacent intervals [a, b) and [b, c) share a boundary with no gaps and no overlaps. The BED format adopts exactly this convention. GFF and VCF predate this reasoning or follow biological tradition where “the first base” is base 1.

0-based half-open vs 1-based closed coordinate systems

3.1 0-Based, Half-Open

Used by BED format.

  • The first base of a chromosome is position 0
  • The interval is [start, end)—start is included, end is excluded
  • Length = end - start

Example: the three bases GTA starting at the third position of ACGTACGT are represented as (2, 5).

3.2 1-Based, Closed

Used by GFF/GTF, SAM/BAM, and VCF formats.

  • The first base of a chromosome is position 1
  • The interval is [start, end]—both start and end are included
  • Length = end - start + 1

The same three bases GTA are represented as (3, 5).

3.3 Format-to-Coordinate Mapping

Format System First base End included?
BED 0-based, half-open 0 No
GFF/GTF 1-based, closed 1 Yes
SAM/BAM 1-based, closed 1 Yes
VCF 1-based 1 N/A (single position)
Note

BAM is the binary-compressed form of SAM. Internally BAM stores positions as 0-based, but this is a serialization detail—every tool that reads BAM (samtools, pysam, IGV) presents coordinates as 1-based, identical to SAM. You never need to handle this conversion yourself.

3.4 Converting Between Systems

To convert the same feature:

  • BED → GFF: GFF_start = BED_start + 1, GFF_end = BED_end
  • GFF → BED: BED_start = GFF_start - 1, BED_end = GFF_end
WarningThe Off-by-One Trap

Mixing coordinate systems silently shifts every interval by one base. Downstream analyses will appear to work but produce subtly wrong results—variants assigned to wrong genes, peaks missing promoters by one base. Always check which system your files use before combining them.

4. Interval File Formats

4.1 BED Format

BED (Browser Extensible Data) is the simplest and most widely used interval format. It is tab-delimited and 0-based half-open.

BED3 — the minimal form:

NC_004318.2 322 1056
NC_004318.2 4528    6356
NC_004318.2 9843    12402

Three columns: chrom, chromStart, chromEnd.

BED6 adds name, score, and strand:

NC_004318.2 322 1056    PF3D7_0400100   0   +
NC_004318.2 4528    6356    PF3D7_0400200   0   -
NC_004318.2 9843    12402   PF3D7_0400300   0   +

BED12 extends to 12 columns, adding fields for thick display regions and block (exon) structure—used for multi-exon gene models in genome browsers.

Note

BED files must be tab-delimited (not space-delimited) and should not have a header line. Many tools silently produce wrong results if these conventions are violated.

4.2 GFF3/GTF Format

GFF3 (General Feature Format) and GTF (Gene Transfer Format, essentially GFF version 2) use nine tab-delimited columns and 1-based closed coordinates:

NC_004318.2 RefSeq  gene    323 1056    .   +   .   ID=PF3D7_0400100;Name=RNF5
NC_004318.2 RefSeq  gene    4529    6356    .   -   .   ID=PF3D7_0400200;Name=PF3D7_0400200

Columns: seqid, source, type, start, end, score, strand, phase, attributes.

Notice the same gene PF3D7_0400100 has start=322 in BED and start=323 in GFF—a direct consequence of the coordinate system difference.

4.3 VCF Positions

VCF uses 1-based coordinates for the POS field. Students encountered this in Lecture 19 and Lecture 20. A VCF record with POS=1024 refers to the 1024th base on the chromosome.

To convert a single-nucleotide variant to BED: BED_start = VCF_POS - 1, BED_end = VCF_POS.

5. Core Interval Operations

Six operations form the foundation of interval arithmetic in genomics. Nearly every analysis question can be decomposed into a sequence of these operations.

The six core interval operations

5.1 Intersect

What it does: finds the overlapping portions between two interval sets A and B.

Biological use case: “Which of my called variants fall within annotated genes?” We answered this in Lecture 20 using SnpEff—but the underlying operation is an intersection of variant positions with gene intervals.

bedtools intersect -a variants.bed -b genes.bed

Key flags:

  • -wa / -wb: report the original A/B entry (not just the overlap)
  • -v: report entries in A with no overlap in B (the anti-join)
  • -f 0.50: require at least 50% of A to be overlapped
  • -r: apply the overlap fraction reciprocally to both A and B

5.2 Subtract

What it does: removes portions of A that overlap with B.

Biological use case: “Remove all variants in repetitive or low-complexity regions before downstream analysis.”

bedtools subtract -a variants.bed -b repeats.bed

5.3 Merge

What it does: collapses overlapping or adjacent intervals within a single set into non-overlapping intervals.

Biological use case: “Collapse overlapping exon annotations into non-redundant gene bodies.”

bedtools sort -i exons.bed | bedtools merge -i -
Note

bedtools merge requires sorted input. Always pipe through bedtools sort first.

5.4 Complement

What it does: returns the regions of the genome not covered by any interval in the input set.

Biological use case: “What fraction of chromosome 4 is intergenic (not covered by any gene annotation)?”

bedtools complement -i genes.bed -g genome.txt

The -g flag requires a genome file—a two-column tab-delimited file listing each chromosome and its length:

NC_004318.2 1200490

5.5 Closest

What it does: for each interval in A, finds the nearest interval in B.

Biological use case: “For each intergenic variant, what is the nearest gene?”

bedtools closest -a intergenic_variants.bed -b genes.bed

5.6 Coverage

What it does: counts how many intervals in B overlap each interval in A.

Biological use case: “How many variants fall within each gene? Which genes have the highest variant density?”

bedtools coverage -a genes.bed -b variants.bed

Output appends columns for: count of overlaps, number of bases covered, interval length, and fraction covered.

6. BEDTools

6.1 History

BEDTools was created by Aaron Quinlan and Ira Hall in 2010 [1]. It provides over 30 subcommands for interval manipulation and has become the de facto standard for genomic interval arithmetic. The toolkit is available both on the command line and within Galaxy.

6.2 Architecture

Early versions of BEDTools used interval trees—a balanced binary search tree where each node stores an interval, enabling overlap queries in O(log n + k) time (n = database intervals, k = overlaps found). For ~25,000 genes, finding overlaps requires roughly 15 comparisons instead of 25,000. Modern BEDTools (v2.18+) defaults to a sweep-line algorithm (“chromsweep”) for sorted input, which scans both files in coordinate order and achieves even better performance in practice. The interval tree approach is retained as a fallback for unsorted data.

6.3 Command Pattern

Every BEDTools command follows the same pattern:

bedtools <subcommand> [options] -a <fileA> -b <fileB>

Common subcommands:

Subcommand Operation
intersect Intersect two interval sets
subtract Subtract B from A
merge Merge overlapping intervals
complement Genome regions not in input
closest Nearest feature in B for each in A
coverage Count overlaps and compute coverage
sort Sort intervals by position
getfasta Extract FASTA sequences for intervals
slop Expand intervals by a fixed number of bases
flank Create intervals from the flanks of features

7. Hands-On: Variants in S. aureus

7.1 The Story

Kaku et al. [5] conducted a nationwide surveillance of methicillin-resistant Staphylococcus aureus (MRSA) bloodstream infections across 51 Japanese hospitals in 2019. They collected 270 MRSA isolates from blood cultures and performed whole-genome sequencing to characterize the molecular epidemiology of these infections. The key finding: SCCmec type IV has replaced SCCmec type II as the dominant MRSA lineage in Japanese bloodstream infections, with ST8-IV (30.7%) and ST1-IV (29.6%) as the most prevalent combinations. The study revealed distinct geographic patterns—ST1-IV dominated in eastern Japan while ST8-IV was more common in the west—and demonstrated that the newer type IV strains show greater susceptibility to clindamycin and minocycline compared to the older type II strains.

We use a subset of these data—already processed through a variant-calling pipeline—to practice interval operations. Our goal: determine whether specific genes of interest carry mutations in these MRSA isolates.

7.2 The Variant-Calling Workflow

The data in the shared history were generated using the Paired-End Variant Calling in Haploid System workflow from the Intergalactic Workflow Commission (IWC). This standardized Galaxy workflow takes three inputs—paired-end reads, a reference genome, and gene annotations—and produces an annotated variant table.

Paired-End Variant Calling in Haploid System workflow. Yellow = inputs, blue = processing steps, orange = output, green = QC report. Solid lines = data flow, dashed lines = QC metrics.

The pipeline proceeds in four phases:

  1. Quality control: fastp trims adapters and low-quality bases from paired-end reads
  2. Alignment: BWA-MEM maps trimmed reads to the reference genome, followed by Samtools view (filtering to properly paired reads) and MarkDuplicates (removing PCR duplicates)
  3. Variant calling: LoFreq Viterbi realigns reads around indels, then LoFreq Call identifies variants in haploid mode
  4. Annotation: SnpEff annotates variants with functional effects (missense, synonymous, etc.) and SnpSift extracts key fields into a final table

A MultiQC report aggregates quality metrics from fastp, mapping, and deduplication steps. The final output is a collapsed table of annotated variants across all samples.

7.3 Data

Import the pre-analyzed history into your Galaxy account:

WarningSetup
  1. Make sure you are logged in to usegalaxy.org
  2. Import the shared history: https://usegalaxy.org/u/cartman/h/unnamed-history-13
  3. Click Import history (the “+” icon at the top of the history panel)

The history contains variant calls (VCF) and gene annotations (GFF) from the MRSA analysis pipeline.

7.4 Genes of Interest

We focus on five S. aureus NCTC 8325 genes that play roles in virulence, cell wall maintenance, and antibiotic resistance:

Protein accession Gene Function
YP_500520.1 SAOUHSC_02023 Bifunctional autolysin
YP_499546.1 SAOUHSC_01049 Predicted protein
YP_501041.1 SAOUHSC_02545 Predicted protein
YP_500662.1 SAOUHSC_02165 Predicted protein
YP_499519.1 SAOUHSC_01022 Predicted protein

Our question: Do any of these genes carry genetic variants in the MRSA isolates? We will answer this using bedtools intersect—overlaying variant positions with gene coordinates.

TipHands-On Exercise

We will work through this analysis together in class using the Galaxy history above and the BEDTools operations from Sections 5 and 6.

8. Beyond BEDTools

BEDTools is the most widely used interval toolkit, but alternatives exist for specific workflows:

  • bedops [2]—optimized for speed on very large datasets; uses a streaming architecture that avoids loading entire files into memory
  • pybedtools [3]—a Python wrapper around BEDTools that enables scripting interval operations in Python (with optional conversion to pandas DataFrames)
  • GenomicRanges—the R/Bioconductor equivalent; dominant in the R ecosystem for genomic data analysis
  • bioframe—a pure Python library built on pandas; no BEDTools dependency required
  • bx-python—a Python library for fast interval indexing and manipulation; provides the interval tree and binned array implementations used by Galaxy

The choice depends on your analysis environment: BEDTools for command-line pipelines, pybedtools or bioframe for Python scripts, GenomicRanges for R workflows. The underlying operations are identical.

ImportantSummary
  • Every genomic feature is an interval defined by (chromosome, start, end)
  • Coordinate systems matter: BED uses 0-based half-open; GFF/GTF and SAM/BAM use 1-based closed; VCF uses 1-based positions. Mixing systems causes off-by-one errors.
  • Six core operations—intersect, subtract, merge, complement, closest, coverage—form the algebra of genomic interval analysis
  • BEDTools is the standard toolkit, available on the command line and in Galaxy
  • Most genomic analysis questions can be decomposed into sequences of interval operations
